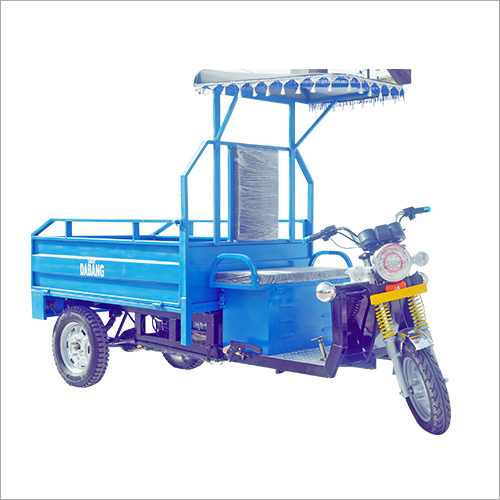

Open E-Loader

<<Previous

Send Inquiry

Product Code : 02

Product Description

Battery Operated Open Loader

Our company is offering Open E-Loader in varied specifications. This loader finds its application at factories for material movement and reducing the human task of loading and unloading. It enables faster material conveyance for uninterrupted productions at various manufacturing plants. This loader has about 1500 mm x 1000 m motor which gives excellent average when loaded to full capacity. Along with this, Open E-Loader is designed and assembled with the aid of modern techniques by diligent team of experts.

Features:

Improved braking
Easy maintenance and replacement of parts
Low transmission losses

Technical Specifications:

Power	1000/ 1200 W
Transmission	Rear drive
Suspension	Telescopic Front Fork
Wheel Size (Front)	90/90x12 & 3x12
Wheel Size (Rear)	90/90x12 & 3x12
Motor Type	1000/ 1200 Watt BLDC Motor
Battery Specifications	48V/100Ah
Charger	48V/15Ah
Charging Time	6-8 hours
Weight(without battery)	260 kg
Max loading (without vehicle weight)	550 to 850 kg
Reverse Gear	Yes
Maximum speed	25 km/hr
Average distance per charge	70 to 80 km
Wheel base	2140mm
Rim Size	4-00-12
Brake	Drum
Chassis	Auto grade tubular
Iron type	14 gauge & 16 gauge
Accessories	FM, Radio, Phone Charger, LED Lights, Floor Mats, Rain Curtains, Bottle holder, Pockets for driver
Differential	35"
Controller	24 - 36Tubes/48V
Shocker	29" Heavy Duty
Rear Shock Absorber	29" (gabriel make) Heavy Duty
Paint	Metallic Paint
Roof	FRP Make
Product Warranty	Chasis - 1.5 year
	Battery, Charger - 6 months
	Motor, Controller - 3 months
